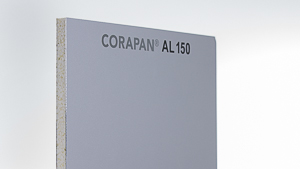

CORAPAN AL 150



CORAPAN® AL 150 is our sandwich panel for the construction sector. Due to the excellent weight to strength ratio and the weather resistance it is used instead of wood or concrete. The product sets standards in surface quality.

General Description:

CORAPAN® AL 150 is a sandwich panel from our CORAPAN® product family with our own core, the CORACEL®. For CORAPAN® AL 150 aluminium is used as skin layers. The core is optimized in its fire behaviour and therefore perfectly suitable for the use in the construction sector.

CORAPAN® AL 150 offers following advantages compared to alternative solutions:

  • Light and strong:

Due to the sandwich construction CORAPAN AL 150 has an excellent weight to strength ratio which lies far beyond the values of concrete or wood. A further outstanding quality of the product is its durable form stability.

  • Fire behaviour:
    Building material class B1 according to DIN 4102

  • Unrivaled surface quality:
    The surface quality of the CORAPAN® product family is unmatched with respect to flatness and flawlessness. This quality results from our discontinuous production process where our core and our skin layers are compressed and cured in a press under temperature.

  • Big and variable formats:
    Formats of up to 5980x2180mm and thicknesses between 6 and 100mm are available.

  • No weathering:
    The products from the CORAPAN® product family with aluminium skin layers don’t weather. This is proven with an impressive track-record of several decades. The cell structure of the core has closed pores and therefore keeps water absorption at a minimum.

  • Customer specific inlays:
    Because of our production process, inlays can efficiently be embedded into our sandwich panels. Inlays are used as reinforcement, fixation structure, etc. With inlays a simple panel is turned into a customized functional device.

We produce formats, cutting, edge finish and inlays according to your requirements. Please inform yourself on our dedicated inlayedge finish and skin layer page about your options.

Under this link you can find further details about our CORAPAN® product family and our core, the CORACEL®.

Technical Data: http://www.coratec.ch/en/corapan



Common Applications:

  • Roofs, walls, floors
  • Balcony floors (CORAFLOOR®)
  • Facades
  • Partition walls / sight protections
  • Clean rooms
  • Machine cladding
  • Containers
