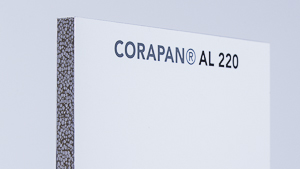

CORAPAN® AL 220 is our sandwich panel when extreme strength is required.

General Description:

CORAPAN® AL 220 is a sandwich panel from our CORAPAN® product family with our own core, the CORACEL®. For CORAPAN® AL 220 aluminium is used as skin layers. The core is designed for high strength which makes it an excellent choice for applications with extreme loads.

CORAPAN® AL 220 offers following advantages compared to alternative solutions:

  • Excellent strength:
    The core provides very high strength especially at pressure- and shear loads.
  • Customer specific inlays:
    Because of our production process, inlays can efficiently be embedded into our sandwich panels. Inlays are used as reinforcement, fixation structure, etc. With inlays a simple panel is turned into a customized functional device.
  • Big and variable formats:
    Formats of up to 5980x2180mm and thicknesses between 15 and 40mm are available.
  • Durable:
    CORAPAN® AL 220 does not absorb water due to its closed cellular core and does not weather.
  • Unrivaled surface quality:
    The surface quality of the CORAPAN® product family is unmatched with respect to flatness and flawlessness. This quality results from our discontinuous production process where our core and our skin layers are compressed and cured in a press under temperature.

We produce formats, cutting, edge finish and inlays according to your requirements. Please inform yourself on our dedicated inlayedge finish and skin layer page about your options.

Under this link you can find further details about our CORAPAN® product family and our core, the CORACEL®.

Technical Data:


Common Applications:

  • Walls, roofs, floors
  • Door Panels
  • Flaps
  • Containers
  • Lids
